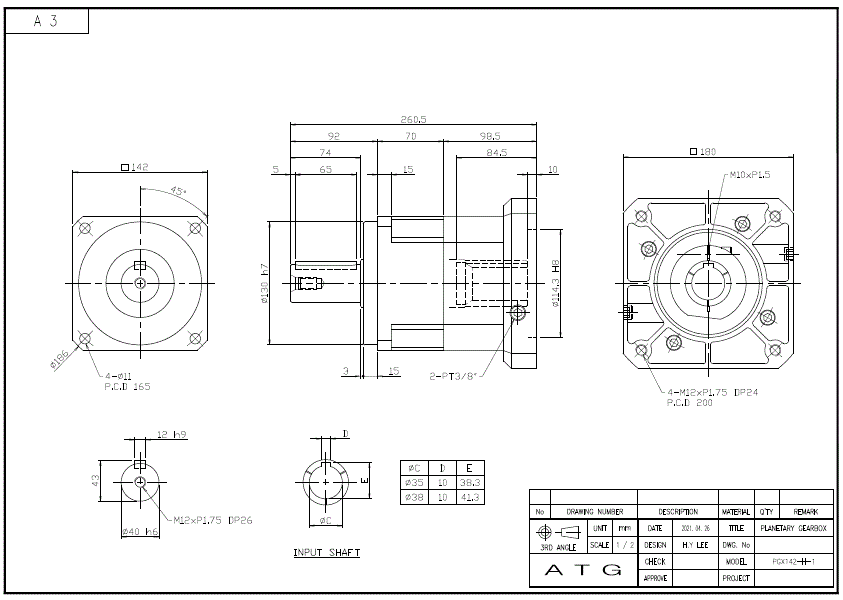

1. PGX142-H 시리즈 1단 감속기 외형도.

PGX142-H 시리즈 1단 감속기 외형도.

PGX142-H 시리즈 외형도 및 카다로그(PGX142-H-(감속비율)

감속기모델명:  PGX142-H-003, PGX142-H-004, PGX142-H-005, PGX142-H-006, PGX142-H-007, PGX142-H-008, PGX142-H-009, PGX142-H-010

1. PDF

2. DWG(2D)

3. STP(3D)

4. PGX-H 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-SR202, HG-SR202B, HG-SR352, HG-SR352B, HG-SR502, HG-SR502B, HG-SR702, HG-SR702B

MR-J3 시리즈

 HF-SP202, HF-SP202B, HF-SP352, HF-SP352B, HF-SP502, HF-SP502B, HF-SP702, HF-SP702B

MR-J2S 시리즈

 HC-SFS202, HC-SFS202B, HC-SFS352, HC-SFS352B, HC-SFS502, HC-SFS502B, HC-SFS702, HC-SFS702B

    PGX-H 시리즈 1단 감속기 SPEC.

PGX-H 감속기 1단 SPEC.

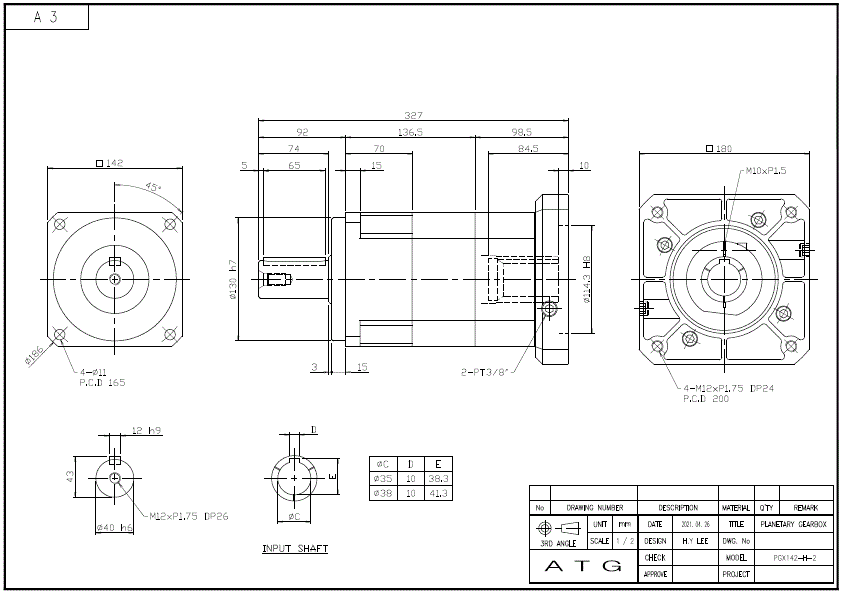

    2. PGX142-H 시리즈 2단 감속기 외형도.
PGX142-H 시리즈 2단 감속기 외형도.

PGX142-H 시리즈 외형도 및 카다로그(PGX142-H-(감속비율)

감속기모델명:  PGX142-H-015, PGX142-H-020, PGX142-H-025, PGX142-H-030, PGX142-H-035, PGX142-H-040, PGX142-H-050, PGX142-H-060,                      PGX142-H-070, PGX142-H-080, PGX142-H-090, PGX142-H-100

1. PDF

2. DWG(2D)

3. STP(3D)

4. PGX-H 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-SR52, HG-SR52B, HG-SR102, HG-SR102B, HG-SR152, HG-SR152B

HG-SR202, HG-SR202B, HG-SR352, HG-SR352B, HG-SR502, HG-SR502B, HG-SR702, HG-SR702B

MR-J3 시리즈

 HF-SP52, HF-SP52B, HF-SP102, HF-SP102B, HF-SP152, HF-SP152B
 HF-SP202, HF-SP202B, HF-SP352, HF-SP352B, HF-SP502, HF-SP502B, HF-SP702, HF-SP702B

MR-J2S 시리즈

 HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B, HC-SFS152, HC-SFS152B
 HC-SFS202, HC-SFS202B, HC-SFS352, HC-SFS352B, HC-SFS502, HC-SFS502B, HC-SFS702, HC-SFS702B

    PGX-H 시리즈 2단 감속기 SPEC.
PGX-H 감속기 2단 SPEC.

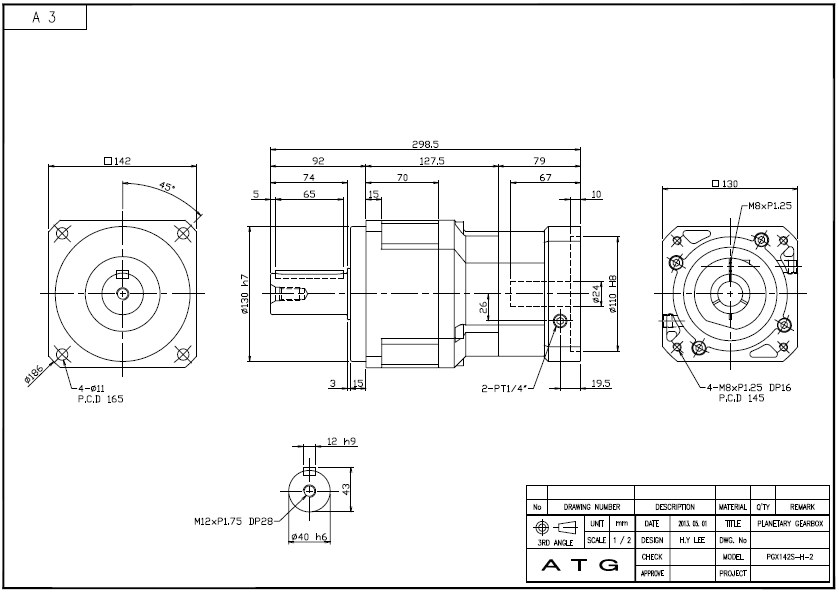

    3. PGX142S-H 시리즈 2단 감속기 외형도.
PGX142S-H 시리즈 2단 감속기 외형도.

PGX142-H 시리즈 외형도 및 카다로그(PGX142-H-(감속비율)

감속기모델명:  PGX142S-H-015, PGX142S-H-020, PGX142S-H-025, PGX142S-H-030, PGX142S-H-035, PGX142S-H-040, PGX142S-H-050,
                     PGX142S-H-060, PGX142S-H-070, PGX142S-H-080, PGX142S-H-090, PGX142S-H-100

1. PDF

2. DWG(2D)

3. STP(3D)

4. PGX-H 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-SR202, HG-SR202B, HG-SR352, HG-SR352B, HG-SR502, HG-SR502B, HG-SR702, HG-SR702B

MR-J3 시리즈

 HF-SP202, HF-SP202B, HF-SP352, HF-SP352B, HF-SP502, HF-SP502B, HF-SP702, HF-SP702B

MR-J2S 시리즈

 HC-SFS202, HC-SFS202B, HC-SFS352, HC-SFS352B, HC-SFS502, HC-SFS502B, HC-SFS702, HC-SFS702B

    PGX-H 시리즈 2단 감속기 SPEC.
PGX-H 감속기 2단 SPEC.
