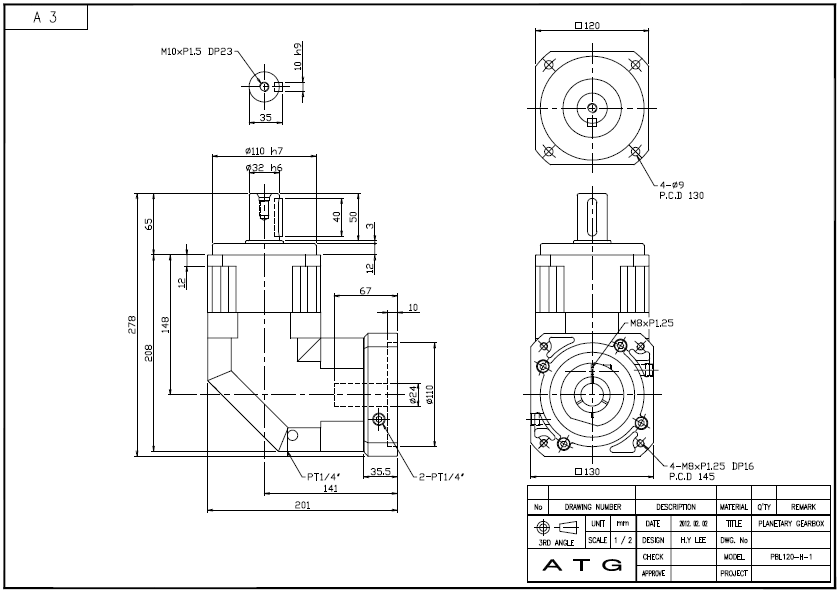

1. PBL120-H 시리즈 1단 감속기 외형도.

PBL120-H 시리즈 1단 감속기 외형도.

PBL120-H 시리즈 외형도 및 카다로그(PBL120-H-(감속비율)

감속기모델명:  PBL120-H-003, PBL120-H-004, PBL120-H-005, PBL120-H-006, PBL120-H-007, PBL120-H-008, PBL120-H-009, PBL120-H-010,
                     PBL120-H-012, PBL120-H-014, PBL120-H-016, PBL120-H-018

1. PDF

2. DWG(2D)

3. STP(3D)

4. PBL-H 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-SR52, HG-SR52B, HG-SR102, HG-SR102B, HG-SR152, HG-SR152B

MR-J3 시리즈

 HF-SP52, HF-SP52B, HF-SP102, HF-SP102B, HF-SP152, HF-SP152B

MR-J2S 시리즈

 HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B, HC-SFS152, HC-SFS152B

    PBL-H 시리즈 1단 감속기 SPEC.

PBL-H 감속기 1단 SPEC.

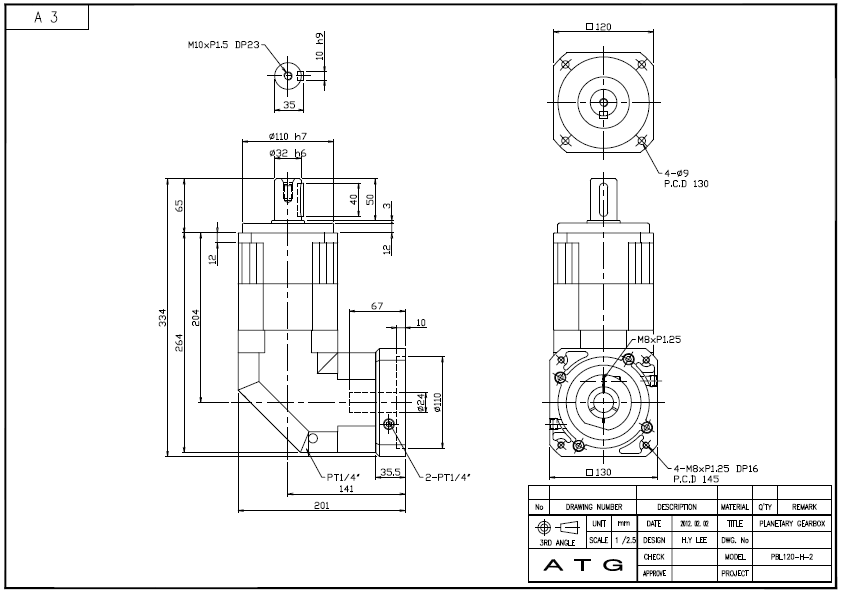

    2. PBL120-H 시리즈 2단 감속기 외형도.
PBL120-H 시리즈 2단 감속기 외형도.

PBL120-H 시리즈 외형도 및 카다로그(PBL120-H-(감속비율)

감속기모델명:  PBL120-H-015, PBL120-H-020, PBL120-H-025, PBL120-H-030, PBL120-H-035, PBL120-H-040, PBL120-H-050, PBL120-H-060,
PBL120-H-070, PBL120-H-080, PBL120-H-090, PBL120-H-100, PBL120-H-120, PBL120-H-140, PBL120-H-160, PBL120-H-180, PBL120-H-200

1. PDF

2. DWG(2D)

3. STP(3D)

4. PBL-H 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-KR73, HG-KR73B, HG-MR73, HG-MR73B, HG-SR52, HG-SR52B, HG-SR102, HG-SR102B, HG-SR152, HG-SR152B

MR-J3 시리즈

 HF-KP73, HF-KP73B, HF-MP73, HF-MP73B, HF-SP52, HF-SP52B, HF-SP102, HF-SP102B, HF-SP152, HF-SP152B

MR-J2S 시리즈

 HC-KFS73, HC-KFS73B, HC-MFS73, HC-MFS73B, HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B, HC-SFS152, HC-SFS152B

    PBL-H 시리즈 1단 감속기 SPEC.
PBL-H 감속기 2단 SPEC.

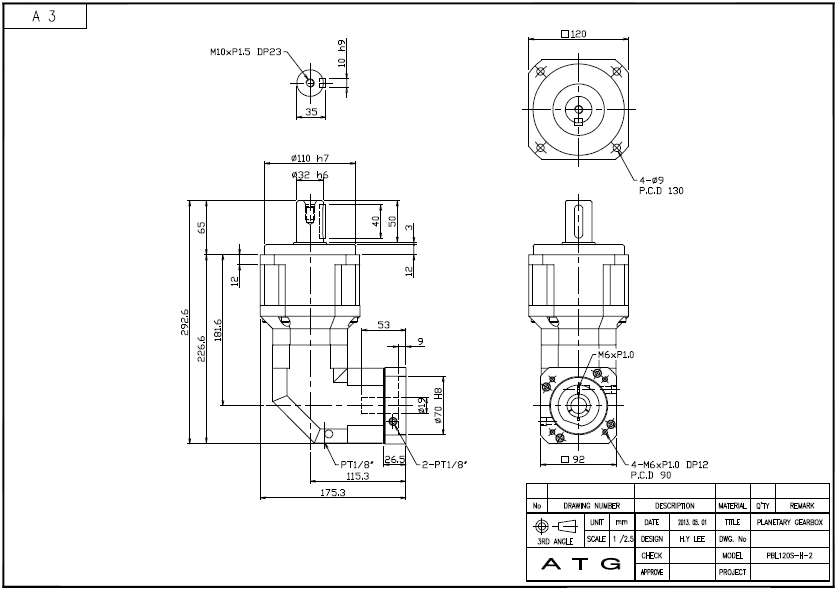

    2. PBL120S-H 시리즈 2(S)단 감속기 외형도.
PBL120S-H 시리즈 2(S)단 감속기 외형도.

PBL120-H 시리즈 외형도 및 카다로그(PBL120-H-(감속비율)

감속기모델명:  PBL120S-H-015, PBL120S-H-020, PBL120S-H-025, PBL120S-H-030, PBL120S-H-035, PBL120S-H-040, PBL120S-H-050,
PBL120S-H-060, PBL120S-H-070,PBL120S-H-080, PBL120S-H-090, PBL120S-H-100, PBL120S-H-120, PBL120S-H-140, PBL120S-H-160,
PBL120S-H-180, PBL120S-H-200

1. PDF

2. DWG(2D)

3. STP(3D)

4. PBL-H 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-KR73, HG-KR73B, HG-MR73, HG-MR73B, HG-SR52, HG-SR52B, HG-SR102, HG-SR102B, HG-SR152, HG-SR152B

MR-J3 시리즈

 HF-KP73, HF-KP73B, HF-MP73, HF-MP73B, HF-SP52, HF-SP52B, HF-SP102, HF-SP102B, HF-SP152, HF-SP152B

MR-J2S 시리즈

 HC-KFS73, HC-KFS73B, HC-MFS73, HC-MFS73B, HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B, HC-SFS152, HC-SFS152B

    PBL-H 시리즈 2단 감속기 SPEC.
PBL-H 감속기 2단 SPEC.
