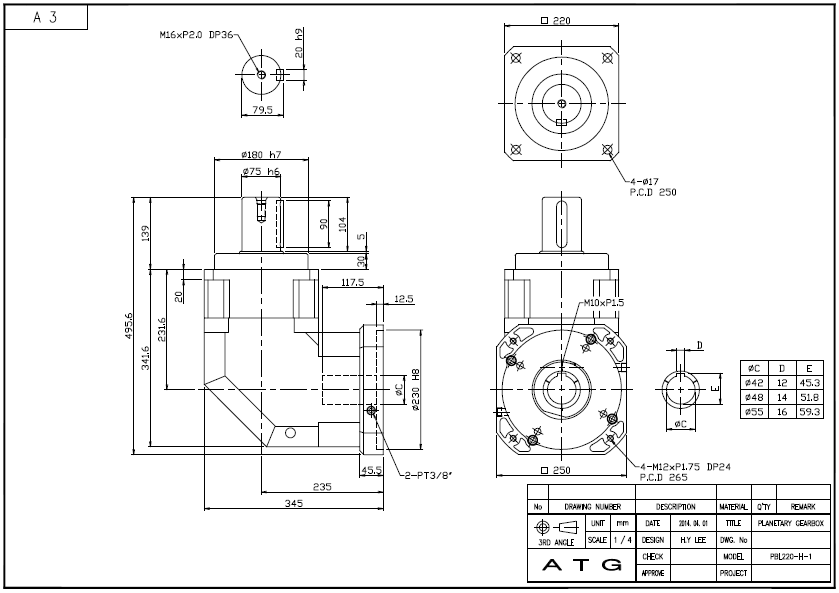

1. PBL220-H 시리즈 1단 감속기 외형도.

PBL220-H 시리즈 1단 감속기 외형도.

PBL220-H 시리즈 외형도 및 카다로그(PBL220-H-(감속비율)

감속기모델명:  PBL220-H-003, PBL220-H-004, PBL220-H-005, PBL220-H-006, PBL220-H-007, PBL220-H-008, PBL220-H-009, PBL220-H-010,
                     PBL220-H-012, PBL220-H-014, PBL220-H-016, PBL220-H-018

1. PDF

2. DWG(2D)

3. STP(3D)

4. PBL-H 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-SR202, HG-SR202B, HG-SR352, HG-SR352B, HG-SR502, HG-SR502B, HG-SR702, HG-SR702B

MR-J3 시리즈

 HF-SP202, HF-SP202B, HF-SP352, HF-SP352B, HF-SP502, HF-SP502B, HF-SP702, HF-SP702B

MR-J2S 시리즈

 HC-SFS202, HC-SFS202B, HC-SFS352, HC-SFS352B, HC-SFS502, HC-SFS502B, HC-SFS702, HC-SFS702B

    PBL-H 시리즈 1단 감속기 SPEC.

PBL-H 감속기 1단 SPEC.

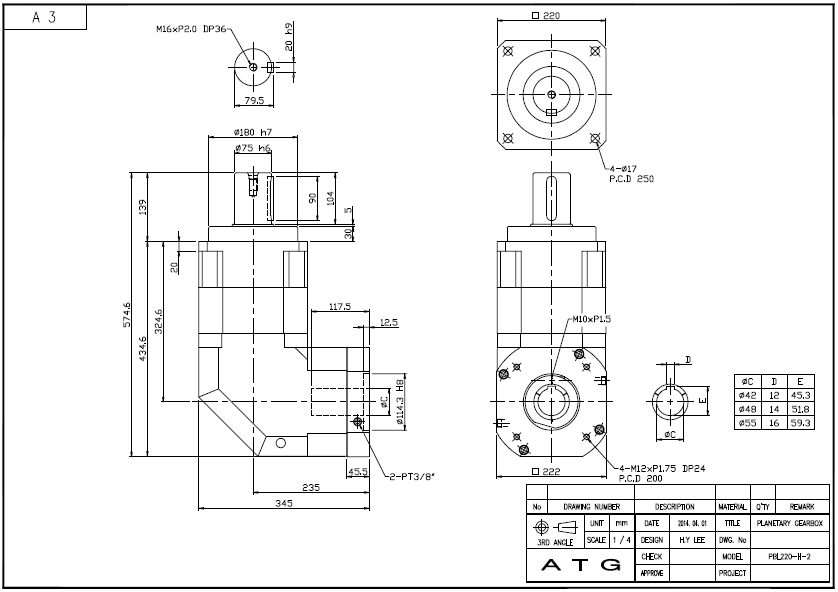

    2. PBL220-H 시리즈 2단 감속기 외형도.
PBL220-H 시리즈 2단 감속기 외형도.

PBL220-H 시리즈 외형도 및 카다로그(PBL220-H-(감속비율)

감속기모델명:  PBL220-H-015, PBL220-H-020, PBL220-H-025, PBL220-H-030, PBL220-H-035, PBL220-H-040, PBL220-H-050, PBL220-H-060,
PBL220-H-070, PBL220-H-080, PBL220-H-090, PBL220-H-100, PBL220-H-120, PBL220-H-140, PBL220-H-160, PBL220-H-180, PBL220-H-200

1. PDF

2. DWG(2D)

3. STP(3D)

4. PBL-H 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-SR52, HG-SR52B, HG-SR102, HG-SR102B, HG-SR152, HG-SR152B

HG-SR202, HG-SR202B, HG-SR352, HG-SR352B, HG-SR502, HG-SR502B, HG-SR702, HG-SR702B

MR-J3 시리즈

 HF-SP52, HF-SP52B, HF-SP102, HF-SP102B, HF-SP152, HF-SP152B
 HF-SP202, HF-SP202B, HF-SP352, HF-SP352B, HF-SP502, HF-SP502B, HF-SP702, HF-SP702B

MR-J2S 시리즈

 HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B, HC-SFS152, HC-SFS152B
 HC-SFS202, HC-SFS202B, HC-SFS352, HC-SFS352B, HC-SFS502, HC-SFS502B, HC-SFS702, HC-SFS702B

    PBL-H 시리즈 2단 감속기 SPEC.
PBL-H 감속기 2단 SPEC.

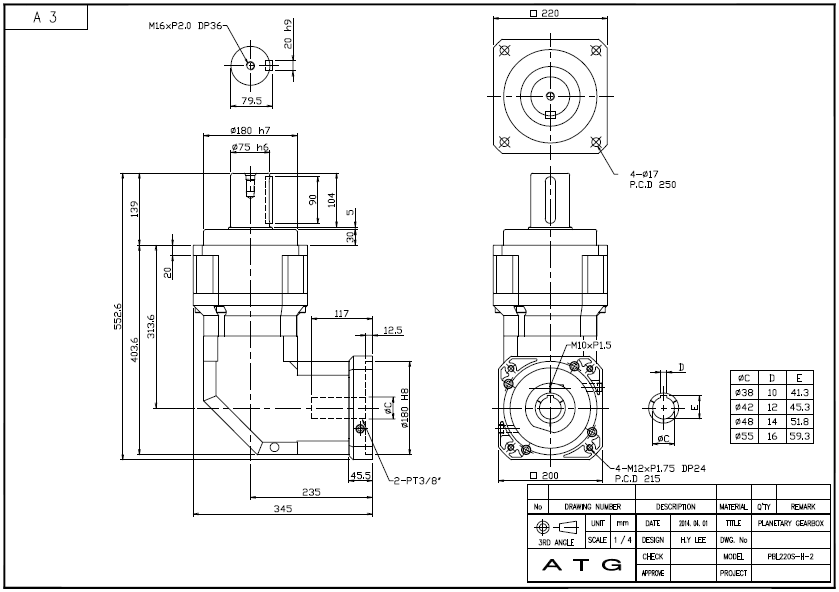

    3. PBL220S-H 시리즈 2(S)단 감속기 외형도.
PBL220S-H 시리즈 2(S)단 감속기 외형도.

PBL220-H 시리즈 외형도 및 카다로그(PBL220-H-(감속비율)

감속기모델명:  PBL220S-H-015, PBL220S-H-020, PBL220S-H-025, PBL220S-H-030, PBL220S-H-035, PBL220S-H-040, PBL220S-H-050,
PBL220S-H-060, PBL220S-H-070, PBL220S-H-080, PBL220S-H-090, PBL220S-H-100, PBL220S-H-120, PBL220S-H-140, PBL220S-H-160,
PBL220S-H-180S, PBL220S-H-200

1. PDF

2. DWG(2D)

3. STP(3D)

4. PBL-H 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-SR52, HG-SR52B, HG-SR102, HG-SR102B, HG-SR152, HG-SR152B

HG-SR202, HG-SR202B, HG-SR352, HG-SR352B, HG-SR502, HG-SR502B, HG-SR702, HG-SR702B

MR-J3 시리즈

 HF-SP52, HF-SP52B, HF-SP102, HF-SP102B, HF-SP152, HF-SP152B
 HF-SP202, HF-SP202B, HF-SP352, HF-SP352B, HF-SP502, HF-SP502B, HF-SP702, HF-SP702B

MR-J2S 시리즈

 HC-SFS52, HC-SFS52B, HC-SFS102, HC-SFS102B, HC-SFS152, HC-SFS152B
 HC-SFS202, HC-SFS202B, HC-SFS352, HC-SFS352B, HC-SFS502, HC-SFS502B, HC-SFS702, HC-SFS702B

    PBL-H 시리즈 2단 감속기 SPEC.
PBL-H 감속기 2단 SPEC.
