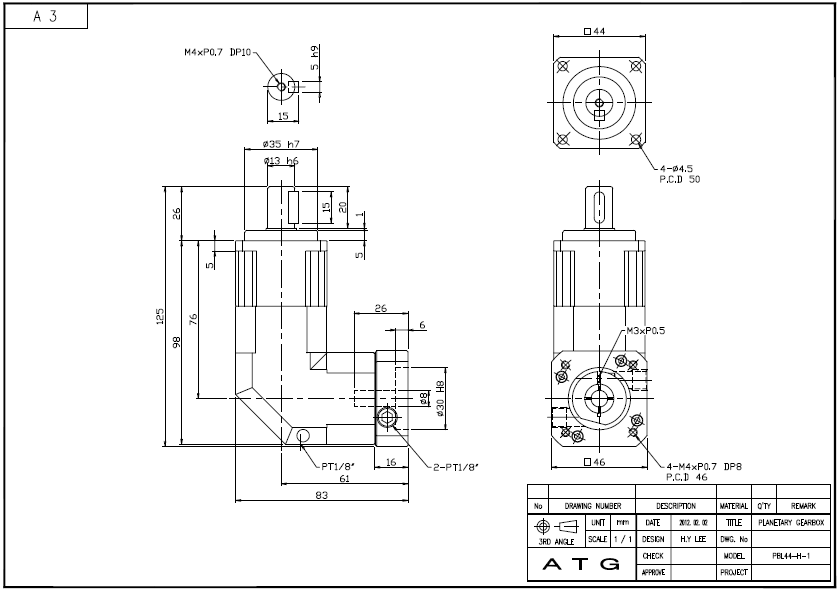

1. PBL44-H 시리즈 1단 감속기 외형도.

PBL44-H 시리즈 1단 감속기 외형도.

PBL44-H 시리즈 외형도 및 카다로그(PBL44-H-(감속비율)

감속기모델명:  PBL44-H-003, PBL44-H-004, PBL44-H-005, PBL44-H-006, PBL44-H-007, PBL44-H-008, PBL44-H-009, PBL44-H-010, PBL44-H-012,
                     PBL44-H-014, PBL44-H-016, PBL44-H-018

1. PDF

2. DWG(2D)

3. STP(3D)

4. PBL-H 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-KR053, HG-KR13, HG-MR053, HG-MR13, HG-KR053B, HG-KR13B, HG-MR053B, HG-MR13B

MR-J3 시리즈

 HF-KP053, HF-KP13, HF-MP053, HF-MP13, HF-KP053B, HF-KP13B, HF-MP053B, HF-MP13B

MR-J2S 시리즈

 HC-KFS053, HC-KFS13, HC-MFS053, HC-MFS13, HC-KFS053B, HC-KFS13B, HC-MFS053B, HC-MFS13B

    PBL-H 시리즈 1단 감속기 SPEC.

PBL-H 감속기 1단 SPEC.

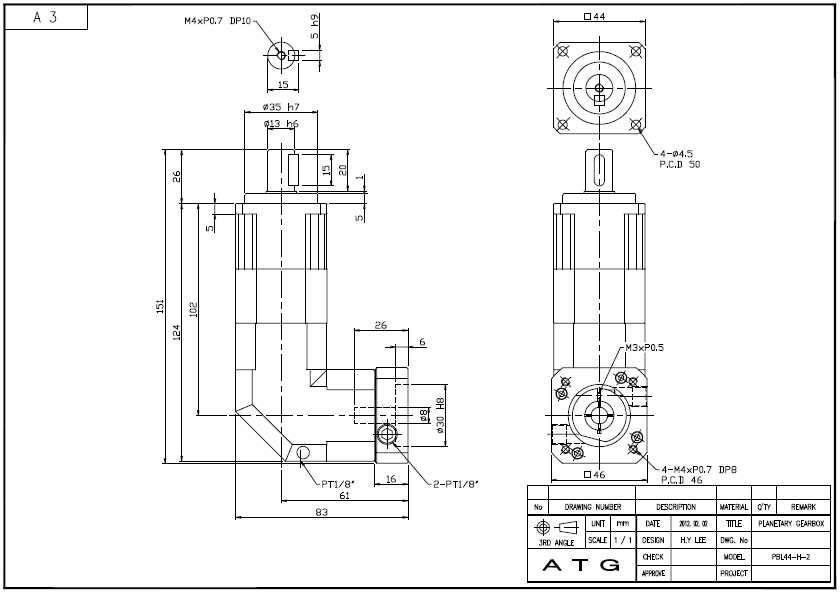

    2 .PBL44-H 시리즈 2단 감속기 외형도.
PBL44-H 시리즈 2단 감속기 외형도.

PBL44-H 시리즈 외형도 및 카다로그(PBL44-H-(감속비율)

감속기모델명:  PBL44-H-015, PBL44-H-020, PBL44-H-025, PBL44-H-030, PBL44-H-035, PBL44-H-040, PBL44-H-050, PBL44-H-060, PBL44-H-070,
                     PBL44-H-080, PBL44-H-090, PBL44-H-100, PBL44-H-120, PBL44-H-140, PBL44-H-160, PBL44-H-180, PBL44-H-200

1. PDF

2. DWG(2D)

3. STP(3D)

4. PBL-H 카다로그

서보모터

  SERVO MOTOR MODEL명(미쓰비시 제품)

MR-J4 시리즈

 HG-KR053, HG-KR13, HG-MR053, HG-MR13, HG-KR053B, HG-KR13B, HG-MR053B, HG-MR13B

MR-J3 시리즈

 HF-KP053, HF-KP13, HF-MP053, HF-MP13, HF-KP053B, HF-KP13B, HF-MP053B, HF-MP13B

MR-J2S 시리즈

 HC-KFS053, HC-KFS13, HC-MFS053, HC-MFS13, HC-KFS053B, HC-KFS13B, HC-MFS053B, HC-MFS13B

    PBL-H 시리즈 2단 감속기 SPEC.
PBL-H 감속기 2단 SPEC.
